CLW5100GSST4 Model technical parameters | |||
Name: | CLW5100GSST4 | Exterior size(mm): | 7350×2470×2800 |
Chassis: | EQ1100FLJ8 | Container size(mm): | ×× |
Total weight :(kg) | 10490 | Approach angle/ Departure angle(° ) | 34/13 |
Payload:(kg) | 5000 | Front suspension/rear suspension(mm): | 1065/2335 |
Kerb Mass:(kg) | 5295(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | EQ1100FLJ8 | Axle weight: | 4000/6490 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3950 | Fronttread(mm): | 1810 |
Max people in cab: | 3 | Rear tread(mm): | 1800 |
Number of tires: | 6 | Number of spring axle: | 9/12+9 |
Tire Type: | 9.00-20 12PR,9.00R20 12PR | ||
introduction: | 罐体有效容积:5.25立方米;罐体外形尺寸(长/长轴/短轴)(mm):3800/1950/1050。防护材料:Q235A碳钢,连接方式:左右侧面部防护与罐体副梁采用焊接连接,后部防护装置与车架采用焊接连接,后部防护断面尺寸(mm):220×50,后部防护离地高度(mm):480。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
YC4E140-42 YC4E160-42 YC6J160-46 ISB3.9-160E40A |
广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 东风康明斯发动机有限公司 |
4260 4260 6494 3900 |
103 118 118 116 |
other parameters |
Introduction: |

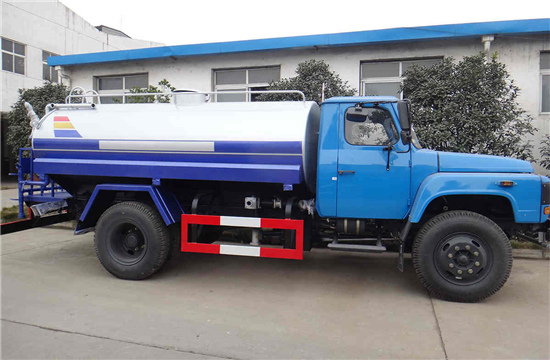

more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
