CLW5121GSST4 Model technical parameters | |||
Name: | CLW5121GSST4 | Exterior size(mm): | 7450×2470×3050 |
Chassis: | EQ1121GKJ2 | Container size(mm): | ×× |
Total weight :(kg) | 12450 | Approach angle/ Departure angle(° ) | 20/15,20/13 |
Payload:(kg) | 6800 | Front suspension/rear suspension(mm): | 1250/2000,1250/2250 |
Kerb Mass:(kg) | 5455(Kg) | Max Speed(km/h): | 85 |
Chassis parameters | |||
Chassis: | EQ1121GKJ2 | Axle weight: | 4750/7700 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3950,4200 | Fronttread(mm): | 1900,1810 |
Max people in cab: | 3 | Rear tread(mm): | 1800 |
Number of tires: | 6 | Number of spring axle: | 8/11+8 |
Tire Type: | 9.00-20 14PR,9.00R20 14PR | ||
introduction: | 罐体有效容积:7.14立方米;罐体外形尺寸(长/长轴/短轴)(mm):4200/2000/1250,后悬(mm):2000,2250与轴距(mm):4200,3950一一对应。随底盘选装驾驶室(前部灯具及保险杠变化)。防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):150×50×5,后部防护离地高度(mm):490。ABS生产厂家:东风电子科技股份有限公司制动系统公司;型号:3631010-C2000 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
YC4E160-42 ISDe160 40 ISB170 40 YC6J160-46 |
广西玉柴机器股份有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 广西玉柴机器股份有限公司 |
4260 4500 5900 6494 |
118 118 125 118 |
other parameters |
Introduction: |

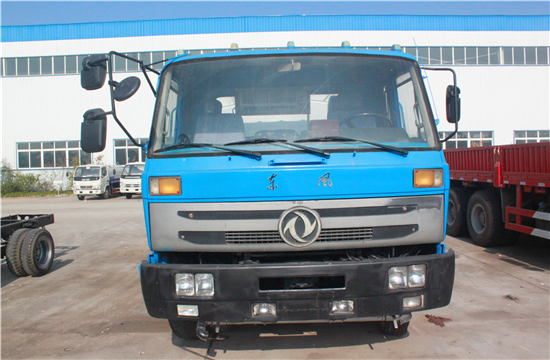

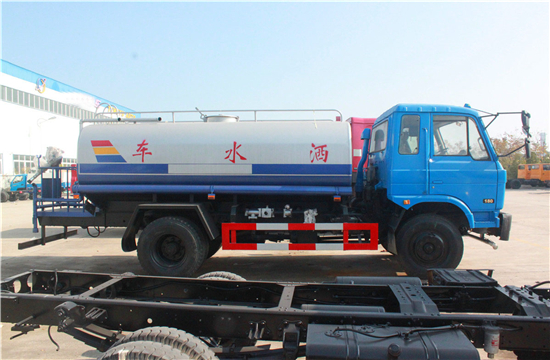

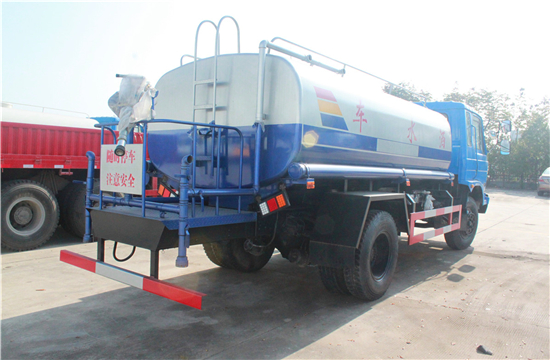

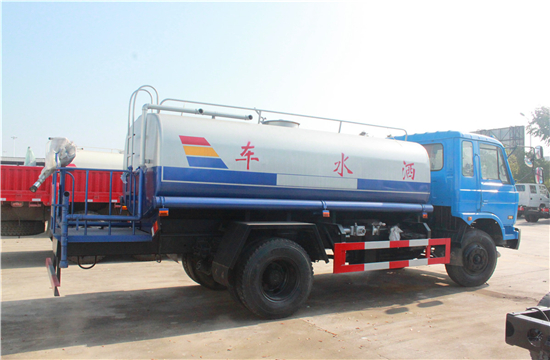

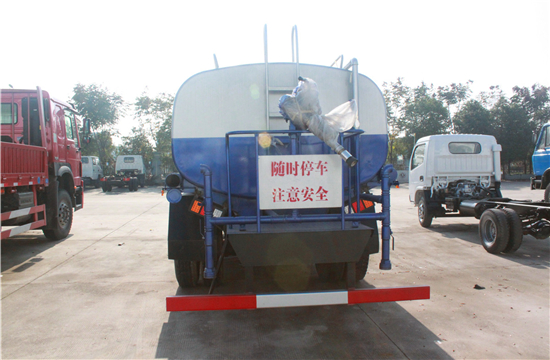

more Picture: |
