CLW5250GPSB5 Model technical parameters | |||
Name: | CLW5250GPSB5 | Exterior size(mm): | 9900×2500×3370 |
Chassis: | BJ1252VMPHE-AB | Container size(mm): | ×× |
Total weight :(kg) | 25000 | Approach angle/ Departure angle(° ) | 16/10 |
Payload:(kg) | 14410,14345 | Front suspension/rear suspension(mm): | 1532/2768 |
Kerb Mass:(kg) | 10460(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | BJ1252VMPHE-AB | Axle weight: | 7000/18000(二轴组) |
Number of axles: | 3 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 4300+1300 | Fronttread(mm): | 1960 |
Max people in cab: | 2,3 | Rear tread(mm): | 1860/1860 |
Number of tires: | 10 | Number of spring axle: | 9/12,3/5,3/4,2/4,10/10 |
Tire Type: | 10.00-20 18PR,10.00R20 18PR,11.00R20 16PR,11.00-20 16PR | ||
introduction: | 1,运输介质为:丙酮水溶液,密度: 800千克/立方米,有效容积: 18.82立方米,罐体外形尺寸(长/长轴/短轴)(mm):6400/2300/1550。2,防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):120×50,后部防护离地高度(mm):500。3,ABS型号与厂家: ABS系统的生产企业:东风电子科技股份有限公司;ABS系统型号:ABS/ASR-24V-4S/4M(控制器型号:3550X-1010)。4,车辆颜色,文字喷涂及局部细节可变化。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
ISD245 50 ISD270 50 |
东风康明斯发动机有限公司 东风康明斯发动机有限公司 |
6700 6700 |
180 198 |
other parameters |
Introduction: |

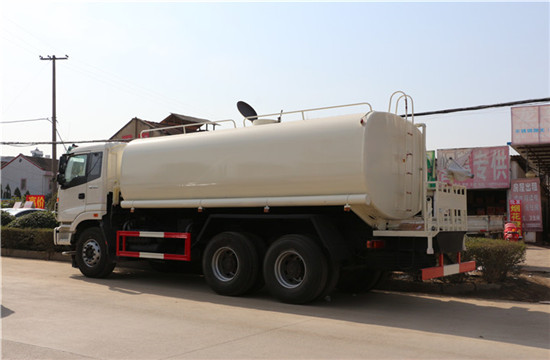

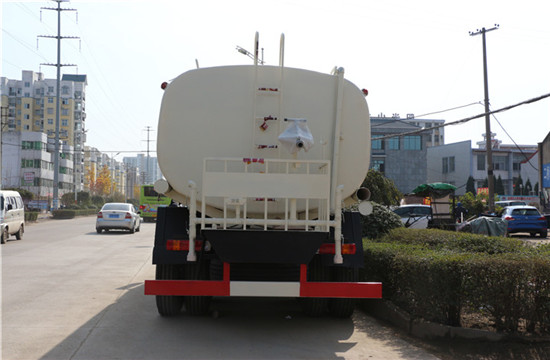

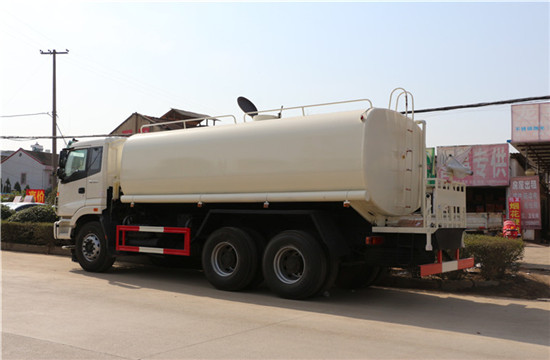

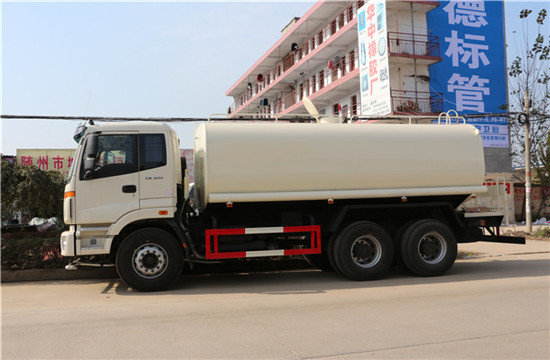

more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
