SCS5255TDYEQ Model technical parameters | |||
Name: | SCS5255TDYEQ | Exterior size(mm): | 10200,11000×2550×3950 |
Chassis: | EQ1250GD5DJ1 | Container size(mm): | ×× |
Total weight :(kg) | 25000 | Approach angle/ Departure angle(° ) | 28/17 |
Payload:(kg) | 11205 | Front suspension/rear suspension(mm): | 1440/3110,1250/3300 |
Kerb Mass:(kg) | 13600(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | EQ1250GD5DJ1 | Axle weight: | 7000/18000(二轴组) |
Number of axles: | 3 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 4350+1300,5400+1300,5900+1300,4750+1300 | Fronttread(mm): | 1940,1965,1985 |
Max people in cab: | 3 | Rear tread(mm): | 1860/1860 |
Number of tires: | 10 | Number of spring axle: | 8/9,8/10,9/10,8/13,9/13 |
Tire Type: | 11.00-20 18PR,11.00R20 18PR | ||
introduction: | 罐体有效容积:13立方米, 罐体外形尺寸(长×长轴×短轴)(mm):4500×2420×1650. 外形尺寸对应关系:整车长/轴距/前悬/后悬/后伸对应关系为(mm):11000/4350+1300/1440(1250)/3110(3300)/800; 10200/4350+1300/1440(1250)/3110(3300)/无后伸。侧、后防护装置材料:Q235B,侧防护连接方式:螺栓连接, 后部防护:焊接、装置断面尺寸(宽×高)60×120 (mm),后部防护离地高度:500mm.随底盘选装驾驶室.罐体颜色和文字喷涂位置可变化.ABS型号为ABS-E 4S/4M,生产厂家为威伯科汽车控制系统()有限公司.仅采11.00-20 18PR,11.00R20 18PR轮胎。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
YC6JA240-50 ISD245 50 ISB220 50 |
广西玉柴机器股份有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 |
6870 6700 5900 |
177 180 162 |
other parameters |
Introduction: |

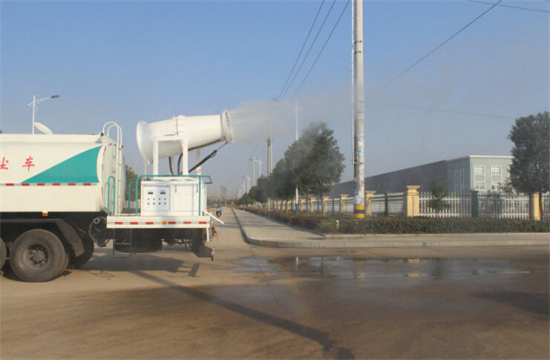

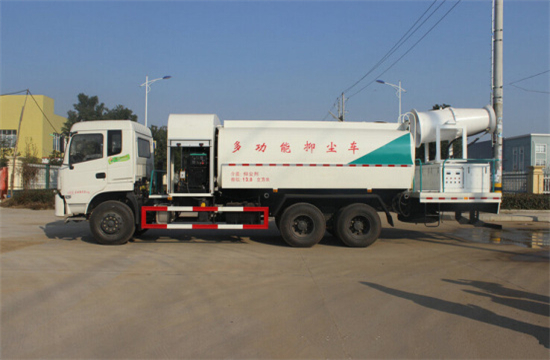

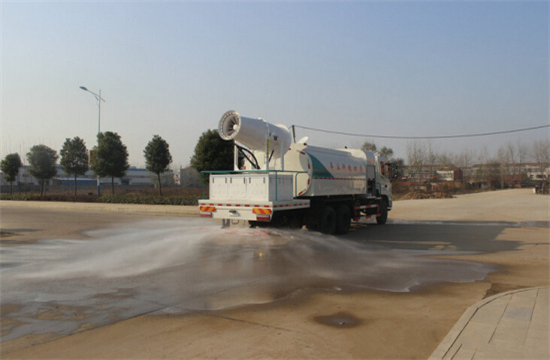

more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
