HLW5165TDY5EQ Model technical parameters | |||
Name: | HLW5165TDY5EQ | Exterior size(mm): | 9830,9595,9000×2500×3950 |
Chassis: | EQ1160GD5NJ | Container size(mm): | ×× |
Total weight :(kg) | 16000 | Approach angle/ Departure angle(° ) | 18/11,18/12,18/13 |
Payload:(kg) | 6140 | Front suspension/rear suspension(mm): | 1430/3300,1430/3215,1430/2920 |
Kerb Mass:(kg) | 9665(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | EQ1160GD5NJ | Axle weight: | 6000/10000 |
Number of axles: | 2 | Fuel Type: | Gasoline |
Wheelbase(mm): | 4500,4950,5100,5200,5600,3800 | Fronttread(mm): | 1876 |
Max people in cab: | 3 | Rear tread(mm): | 1860 |
Number of tires: | 6 | Number of spring axle: | 8/10+8,9/11+8 |
Tire Type: | 10.00-20 16PR,10.00R20 16PR,295/80R22.5 18PR | ||
introduction: | 随底盘选装驾驶室,选装80型,100型喷雾设备,选装喷雾设备摆放样式,选装车身结构;当整车长为9830时,轴距为5100mm,对应的前悬/后悬(mm)为1430/3300;当整车长为9595时,轴距为4950mm,对应的前悬/后悬(mm)为1430/3215;当整车长为9000时,轴距为4500,后伸150,对应的前悬/后悬(mm)为1430/2920;防护装置材料:Q235A,连接方式:焊接固定,后部防护装置断面尺寸(宽×高)50×100(mm),后部防护离地高度:460mm,ABS型号为ABS-E 4S/4M,生产厂家为威伯科汽车控制系统()有限公司。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
YC6J190N-52 YC6J210N-52 YC6G230N-50 NQ200CN5 B6.7GE5 190 B6.7GE5 210 |
广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 东风南充汽车有限公司 湖北函宇动力科技有限公司 湖北函宇动力科技有限公司 |
6494 6494 7800 4750 6700 6700 |
140 155 170 147 140 155 |
other parameters |
Introduction: |

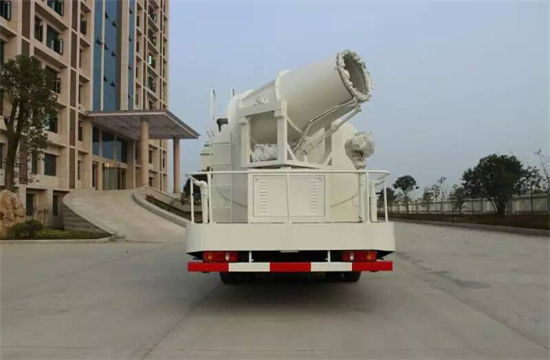

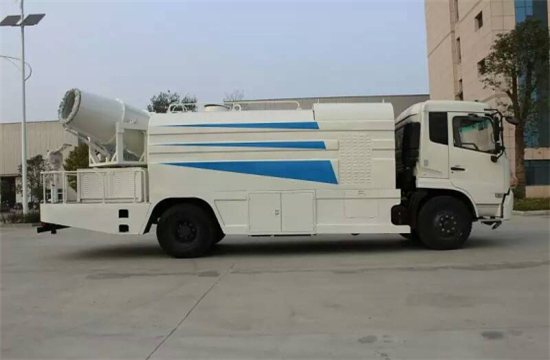

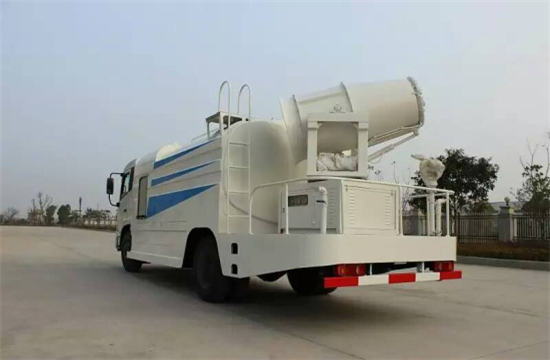

more Picture: |
