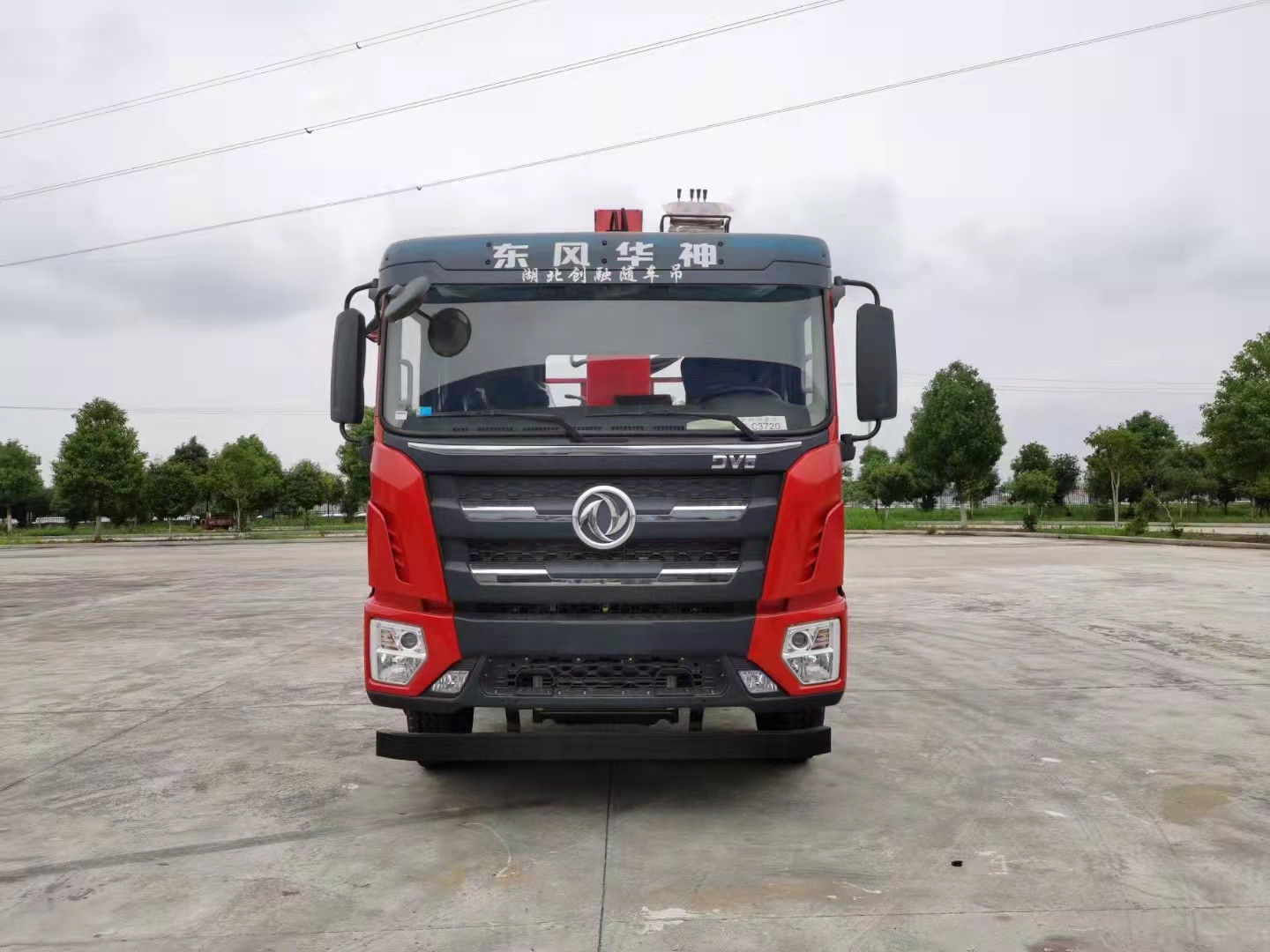

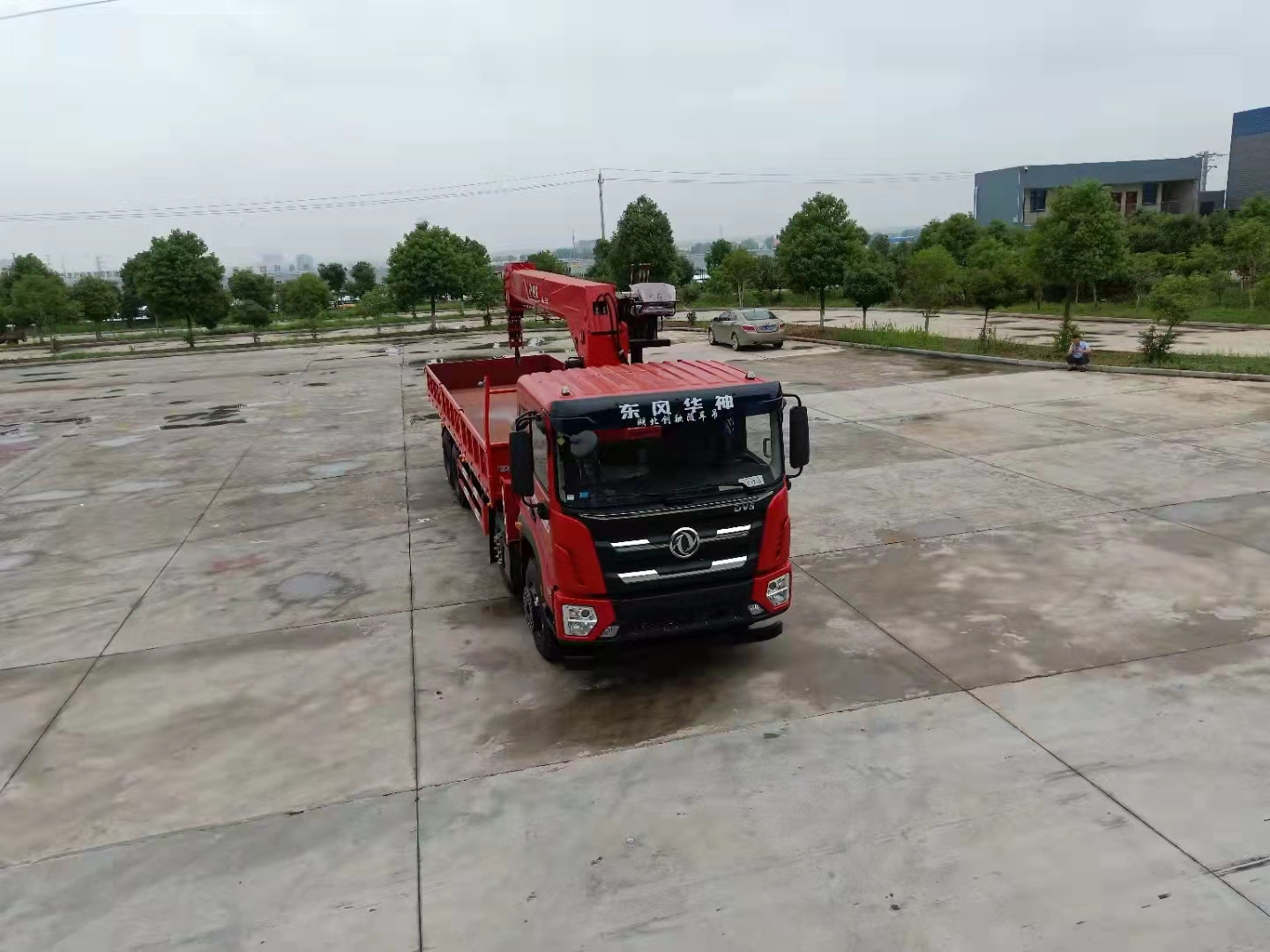

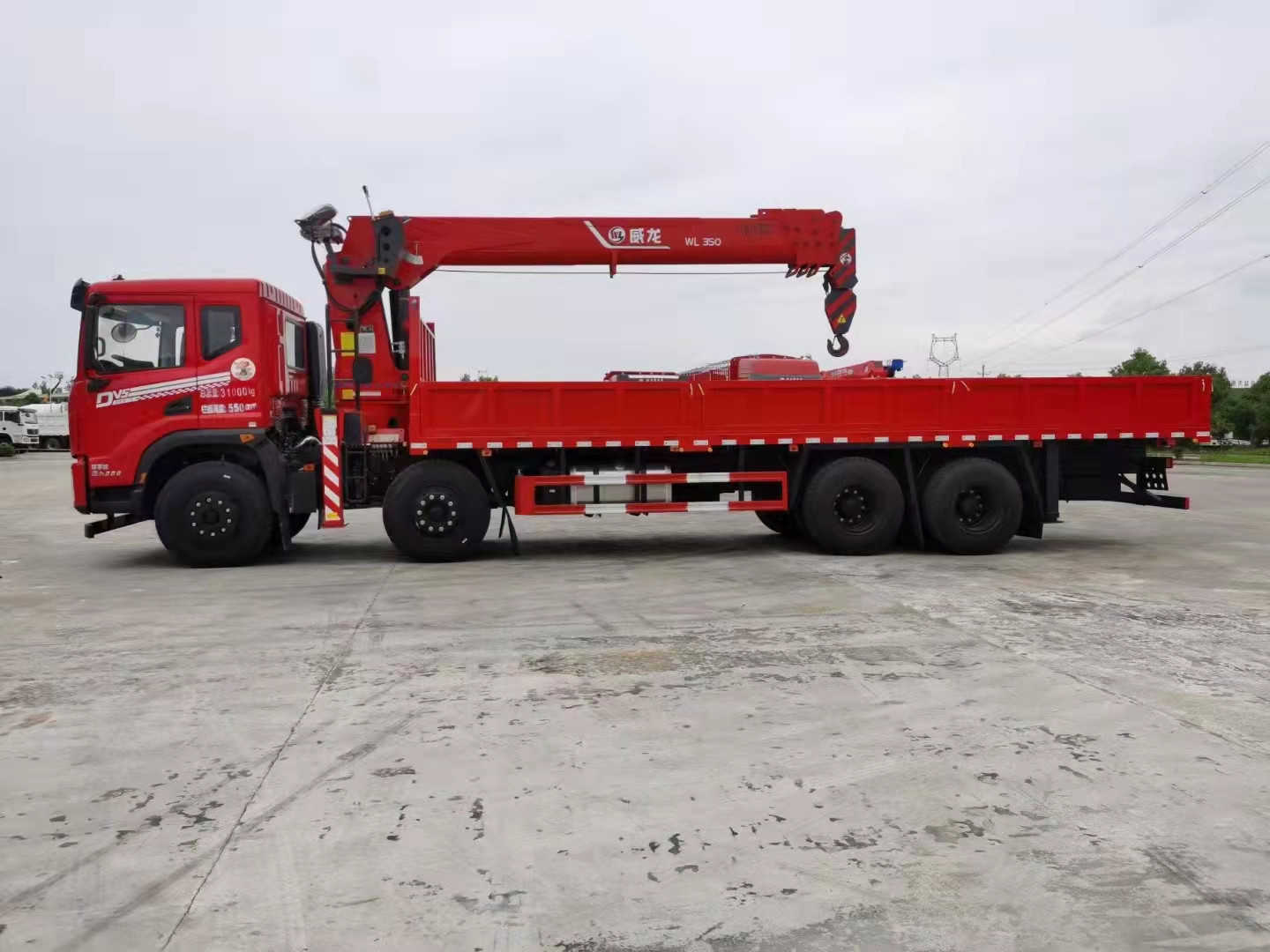

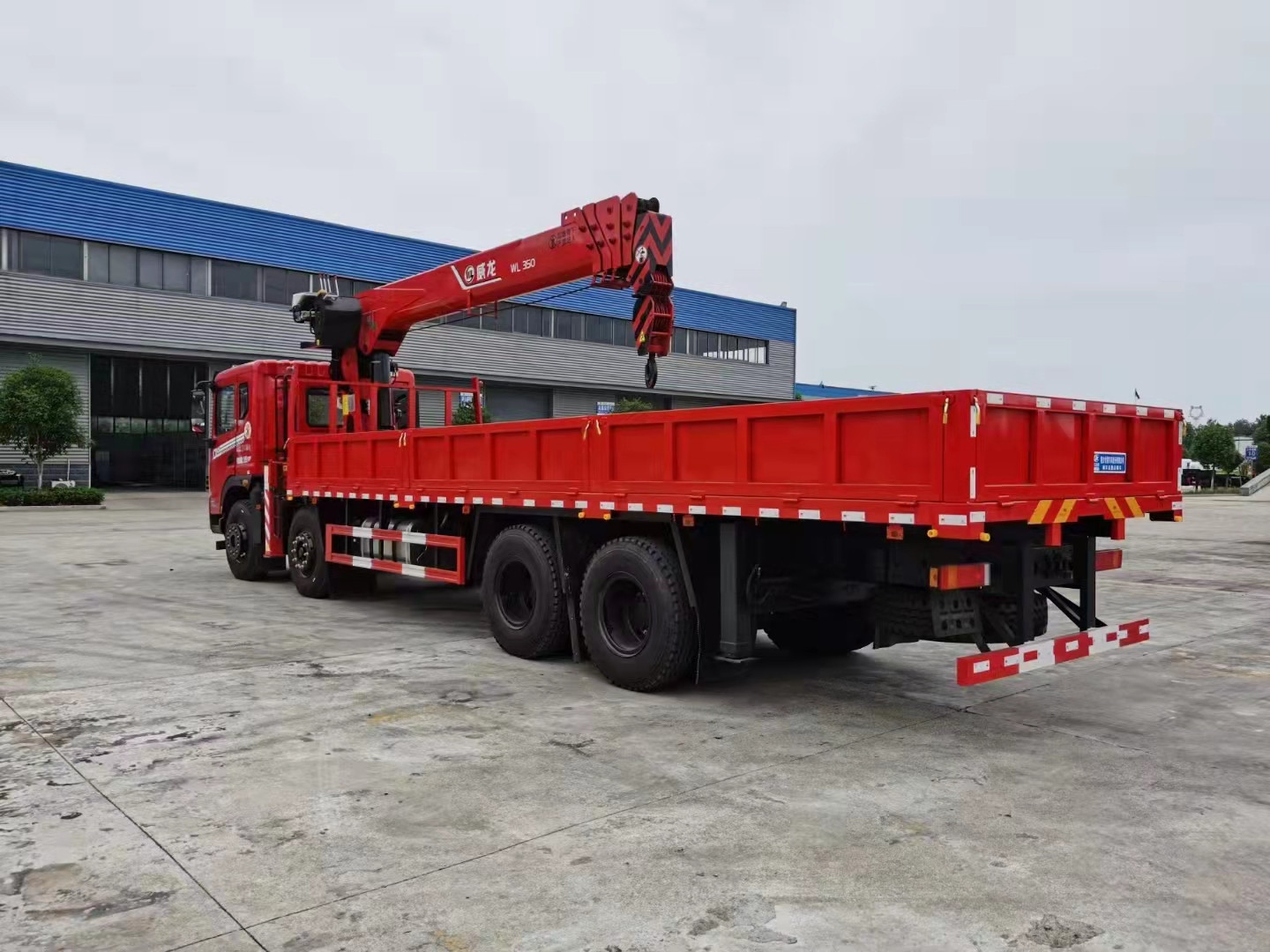

| EQ5316JSQL6D Model technical parameters | |||
| Name: | EQ5316JSQL6D | Exterior size(mm): | 12000×2550×3980 |
| Chassis: | EQ1316GL6DJ | Container size(mm): | 8300,8350×2450×550 |
| Total weight :(kg) | 31000 | Approach angle/ Departure angle(° ) | 19/14 |
| Payload:(kg) | 11430,10270 | Front suspension/rear suspension(mm): | 1410/2690 |
| Kerb Mass:(kg) | 19440,20600(Kg) | Max Speed(km/h): | 88 |
| Chassis parameters | |||
| Chassis: | EQ1316GL6DJ | Axle weight: | 6500/6500/18000(二轴组) |
| Number of axles: | 4 | Fuel Type: | Diesel fuel |
| Wheelbase(mm): | 2150+4400+1350,2250+4100+1350 | Fronttread(mm): | 2040/2040,2050/2050 |
| Max people in cab: | 2 | Rear tread(mm): | 1860/1860 |
| Number of tires: | 12 | Number of spring axle: | 9/9/13 |
| Tire Type: | 11.00R20 18PR | ||
| introduction: | 1.选装货厢样式及厢板结构、吊机操纵台、液压油箱位置,选装水箱、空滤尿素罐、电瓶框等位置布局;2.吊机型号/吊机重量(kg)/大起升载荷(kg)分别为:SPS35000/QYS360/SQS350/5500/14000,S3505/5600/14000,S4005/6400/16000;3.护栏材质:Q235,与车架螺栓连接。后部防护断面尺寸(高×宽)为120×60(mm),离地高度490mm;4.该车已装备具备卫星定位功能的行驶记录仪;5.ABS的型号及生产厂家:3631010-C2000/生产厂家为东科克诺尔商用车制动系统(十堰)有限公司,J ABS/焦作博瑞克控制技术有限公司;6.该车型可选装ETC车载装置;7.YCK08300-60对应油耗申报值均为37.3L/100km,YCK08350-60对应油耗申报值为37.3L/100km,WP8.350E61对应油耗申报值为37.3L/100km;8.仅选用2150+4400+1350轴距. | ||
| Engine parameters | |||
| Type | Manufacturer | Displacement(ml) | Power(kw) |
| YCK08300-60 YCK08350-60 WP8.350E61 |
广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 潍柴动力股份有限公司 |
7698 7698 7800 |
221/300 257/349 257/349 |
| other parameters |
| Introduction: |
| more Picture: |
| ※ Need more information or pictures?please contact us and we will provide best service!。 |
